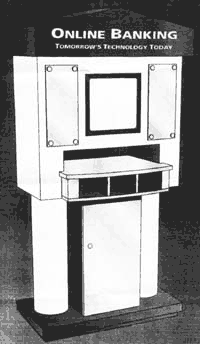

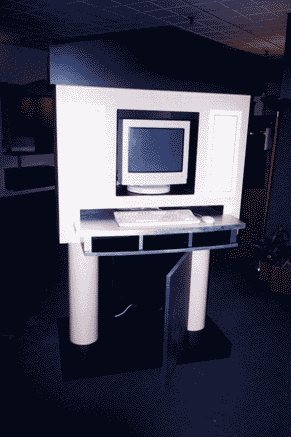

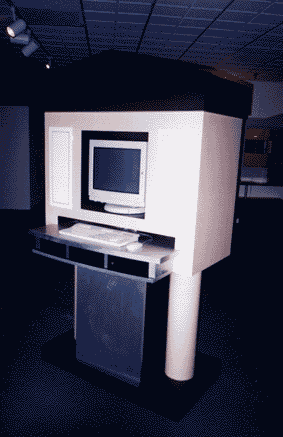

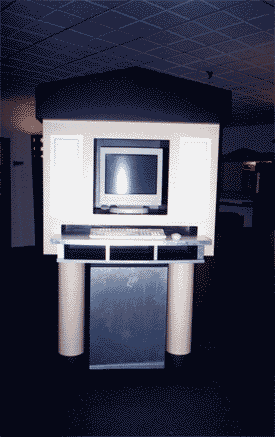

On-line Banking Kiosk I built the prototype unit for the clients approval. They ordered 250 units. The basis of the project is a in bank kiosk for a small banks online banking system. Graphic supplied by the design team. |
 |
|
 |
 |
 |
|
The tower is placed behind a panel to the left or the
right of the monitor
|
Deposit slips and other pamplets are located under the
keyboard
|
There is a storage area in the base
|

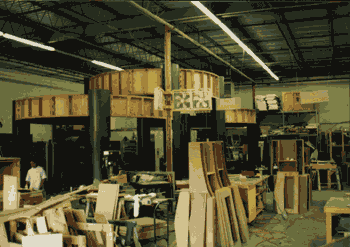

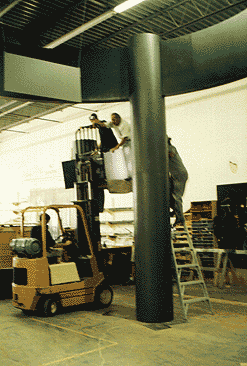

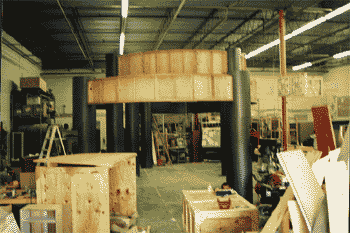

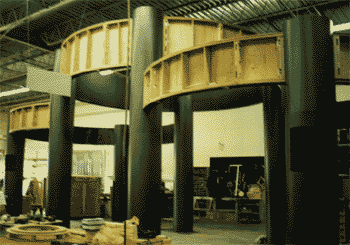

| This was a contract job designed by another firm. It is the Maxis Tire display for a trade show in Las Vegas. The Dimensions are 30' wide, 60' long, and 16' high. I was incharge of overseeing the design of the rings. They are in the center ring 36" high and the two outer rings 24" high. |
 |
|
|
 |
 |
 |
